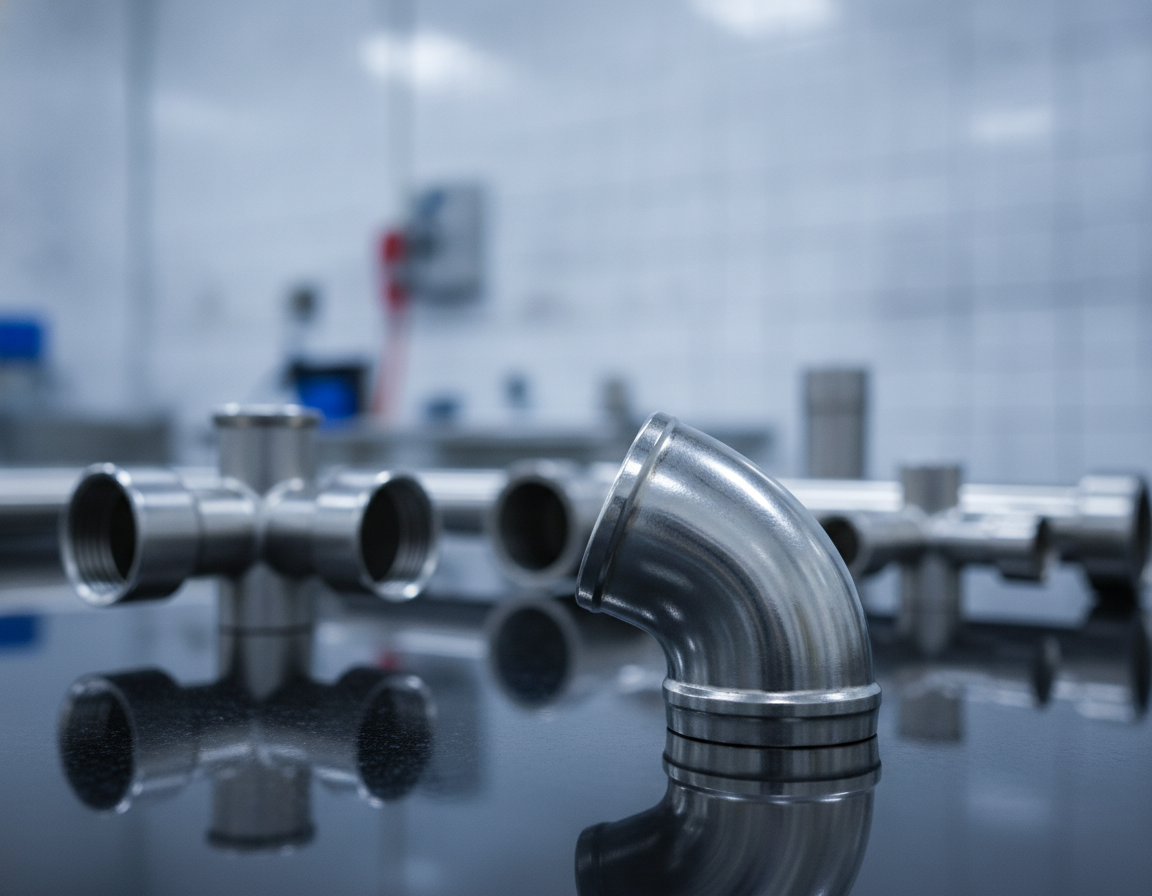

Across many industries, stainless steel sanitary pipe fittings are essential for keeping process systems clean. Components such as ferrules, clamps, sanitary valves, and fittings are made to maintain clean fluid paths. They limit contamination risk while making cleaning, inspection, and maintenance easier.
Sanitary Connections
Selecting the right Hygienic Fittings and Ss Sanitary Fittings shapes product safety, uptime, and regulatory compliance. The material grade, surface finish, and compatibility of connections are key factors. They influence the ease with which a system can be validated and maintained.
Reliable suppliers and detailed catalogs are important for operations teams to select the right parts. Brands such as CSI and distributors like Installation Parts Supply publish useful purchasing information. Their catalog listings, lead times, and customer reviews can support purchasing decisions for Sanitary Valves And Fittings.
Important Takeaways
- Stainless Steel Sanitary Pipe Fittings are critical for contamination control in clean systems.
- Material grade and surface finish affect cleanability and corrosion resistance.
- Hygienic Fittings compatibility limits downtime during maintenance and upgrades.
- Catalogs and reviews from CSI and Installation Parts Supply help dependable sourcing.
- Proper selection of Sanitary Valves And Fittings improves regulatory compliance and product quality.
Overview Of Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Clean-process systems rely on components made for hygiene, safety, and efficiency. A sanitary fitting should provide smooth surfaces, tight seals, and accessible cleaning points. These features are critical for preventing contamination and supporting clean-in-place and sterilize-in-place routines.
Sanitary Fittings Definition And Purpose
Sanitary fittings, often called hygienic fittings, are designed to create crevice-free connections. That design reduces bacterial growth and helps maintain product purity during transfer and processing. Their design supports faster cleaning while reducing cross-contamination risk.
Industries That Use Hygienic Fittings
Food processors use hygienic fittings to meet safety standards and reduce spoilage risk. Beverage manufacturers use these fittings to protect flavor, clarity, and shelf life. Pharmaceutical plants choose fittings that meet strict regulatory requirements.
Biotech facilities need reliable sanitary connections for fermentation, cell culture, and bioprocessing. These industries value traceability, repeatable cleaning, and material compatibility.
Why Stainless Steel Is Used In Sanitary Applications
Stainless steel is favored for its corrosion resistance, mechanical strength, and cleanability. Grades like 304 and 316L handle chemicals and high temperatures. They also support smooth finishes, low Ra values, and electropolished surfaces.
Stainless components help limit bacterial growth and extend service life during aggressive cleaning cycles. Tri Clover Sanitary Fittings and other standardized interfaces simplify assembly, inspection, and maintenance in hygienic systems.
Guide To Stainless Steel Sanitary Pipe Fittings
In modern food, beverage, and pharmaceutical systems, stainless steel sanitary pipe fittings are critical. Choosing the right material, component type, and surface finish minimizes contamination risk and makes cleaning easier. This guide will explain common grades, typical component families, and finish options for hygienic performance.
Materials And Grades Commonly Used
Type 304 stainless steel is recognized for its corrosion resistance and mechanical strength, making it suitable for general processing lines. It is commonly used for tanks, structural supports, and areas where product-contact risk is lower.
Type 316L provides superior resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching grades across components supports corrosion resistance and prevents galvanic issues when parts are joined. Specifying 304 or 316L at the design stage makes easier the procurement of SS Sanitary Fittings and associated parts.
Common Sanitary Fitting Types And Their Roles
Ferrules are the standard connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings ensure smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings join flexible lines and permanent pipe runs. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing a system with compatible SS Sanitary Fittings reduces downtime and leak risks.
Why Surface Finish Matters For Cleanability
Surface roughness influences how residues adhere. A 32RA internal finish is a common spec that combines cost and cleanability for most food and beverage applications.
Electropolishing further improves the metal and enhances passivity. This treatment reduces microbial harborage and boosts corrosion resistance in aggressive environments.
Specifying consistent finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When components share 32RA or electropolished surfaces, cleaning validation becomes simpler.
| Component | Usual Material | Typical Finish | Typical Application |
|---|---|---|---|
| Butt-weld and weld-in ferrules | 304 or 316L | 32RA internal/external finish | Sanitary welded pipe ends |
| Tri-Clamp two-piece clamps | 316L for demanding use | 32RA finish or electropolished surface | Fast sanitary assembly and disassembly |
| Weld fittings and couplings | 304 / 316L | 32RA, electropolished optional | Permanent connections, elbows, and tees |
| Sanitary Hose Fittings | 316L common | Electropolished product-contact surfaces | Hose-to-pipe transfer connections |
| Sanitary valves and process fittings | 316L commonly used for product-contact areas | Polished internal surfaces | Flow control with hygienic profiles |
Tri Clover Fittings And Tri-Clamp Fittings Catalog Options
Tri Clover Pipe Fittings follow strict dimensional standards that support cross-manufacturer compatibility. Standards such as DIN 32676 and DIN 11864-3A define ferrule-face geometry and clamp interfaces. This supports sanitary lines remain leak-free and easy to maintain. These standards make easier the selection of Triclover Fittings for food, beverage, and pharmaceutical applications.
When perusing a Tri-Clamp Fittings Catalog, compare size ranges, material specifications, and surface finishes. Catalogs typically list two-piece clamps from 0.25″ to 4″, along with single-pin designs and corresponding gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Important catalog items include clamps, ferrules, and gasket sets sized by inches or DN. Prices for small two-piece clamps start under ten dollars, while larger clamps are in the low double digits. Each Triclover Fitting listing should show OAL, ID/OD finish, gasket compatibility, and material grade. This supports the correct part is chosen at the time of order.
High-pressure applications may require double-bolt or heavy-duty two-piece clamps. These clamps include a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, select high-pressure clamps based on rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material influences both longevity and cleaning performance. 316L ferrules provide better chloride resistance in harsh or chemically aggressive environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This allows for the selection of Tri Clover Pipe Fittings based on application needs and service conditions.
Spec sheets should include clamp size charts, ferrule dimensions, surface finishes, and part numbers to streamline procurement. A well-organized catalog facilitates quick replacement of Triclover Fittings, minimizing downtime. Choose suppliers that publish detailed specifications for each Tri Clover Fitting so interchangeability across brands can be confirmed.
Sanitary Connections And Compatibility With CSI Sanitary Fittings
Sanitary connections are important for linking pipes, valves, and equipment in clean systems. The right joint type is critical for maintaining hygiene and efficiency. This section reviews common connection styles, brand interchangeability, and supplier reliability feedback.
There are several connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each style has different advantages for assembly speed, cleanability, and leak risk.
Clamp connections are valued for their quick assembly and ease of disassembly for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility is important when mixing components. CSI Sanitary Fittings and Csi Fittings align with common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien publishes specification sheets that help confirm compatibility with major Tri-Clamp systems when the standards match.
To confirm compatibility, match the nominal size, sealing face, material grade, and surface finish. Verify standards such as DIN 32676 and DIN 11864 on datasheets. Mismatched finishes or grades can cause corrosion, leakage, or product-residue traps.
Customer feedback gives practical insights into supplier reliability. Reviews for CSI often mention consistent part quality and fast shipping, with some buyers reporting next-day delivery on stock items. Others praise the responsive communication after order inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear specification sheets help reduce downtime and avoid costly returns when buying Sanitary Connections, CSI Sanitary Fittings, or Steel & O’Brien components.
| Connection Style | Best Use | Cleanability | Interchangeability Notes |
|---|---|---|---|
| Clamp-style sanitary connection | Product-contact lines needing frequent disassembly | High cleanability with a removable gasketed seal | High if size and sealing face match; CSI fittings usually fit standard systems |
| Butt-Weld / Socket-Weld | Permanent runs needing smooth bore | Very high after proper polishing | Standardized dimensions ensure cross-brand fit for ferrules and couplings |
| Threaded fitting connection | Non-product-contact lines, utilities | Moderate; threads can trap residue | Use carefully and confirm grade, thread style, and finish |
| Hose with Ferrule | Hose transfer service and movable equipment | Good when ferrule, gasket, and clamp match | Requires matching ferrule profile and Sanitary Coupling for leak-free fit |
Sanitary Pipe Fittings Stainless And SS Sanitary Fittings Selection Guide
Choosing the right sanitary components involves a few focused steps. This guide helps match size, material, finish, and gasket type to process requirements. Use the checks below to reduce downtime and support hygienic performance.
Start with size, designation, and connection standard. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog matches include DN20/DN25/DN32/DN40/DN50/DN65/DN100 mapped to 0.25″–4″ Tri-Clamp sizes. Check mating faces, gasket grooves, and flange profiles to confirm compatibility.
Material selection is important. For routine food and beverage lines, 304 covers strength and cleanability needs. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Many suppliers list 316L ferrules and fittings as standard choices for harsh service environments.
Surface finish and gasket selection affect cleanability, seal life, and validation results. Specify finish targets such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-sections and clamp pressure to avoid leaks.
Assess pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure service may require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review pressure ratings in the catalog and select clamps rated above operating pressure for safety margin.
Copper Tri Clamp Fittings may be considered for specialized or niche applications. Copper tri clamp fittings can provide conductivity and antimicrobial benefits in certain systems. Before pairing copper with stainless lines, validate compatibility with cleaning agents, product chemistry, and dissimilar-metal corrosion risk.
Final verification steps can save money and prevent ordering mistakes. Compare catalog part numbers against DN/TC inch equivalents, confirm grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, clamp pressure, and part numbers to streamline spare-parts ordering and maintenance.
Sanitary Coupling And Sanitary Weld Fittings Installation, Maintenance, And Best Practices
Keeping sanitary connections clean and reliable is important in hygienic systems. Follow specific steps for assembling tri-clamp assemblies and welded joints to avoid leaks and contamination. Detailed records of materials, finishes, torque values, and maintenance are important for traceability and audits.
Correct assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces, ensuring the sealing surfaces are aligned. Next, fit the clamp and tighten by hand, then apply the specified torque with a calibrated wrench. For high-pressure applications, use double-bolt clamps with suitable hardware and follow recommended torque values to avoid over-compression.
Sanitary Weld Fittings guidance
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas purging to reduce oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Regular sanitary maintenance
Run CIP and SIP cycles according to process requirements. Regularly inspect ferrule faces, clamps, and gaskets after thermal cycles and scheduled cleanings. Replace gaskets when they show hardening, extrusion, cuts, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Troubleshooting frequent sanitary fitting issues
Identify leaks by first checking clamp seating and gasket condition. Misaligned clamps can cause uneven compression and create leaks. To fix, loosen, realign, and retighten to the specified torque. For gasket extrusion or failure, confirm the correct gasket material and durometer, and verify that groove dimensions match ferrule specifications.
How to address surface damage
Surface damage such as scratches, pitting, or crevice corrosion can hold microorganisms. Minor scratches can be polished out and then electropolished to restore the Ra levels. Components should be replaced if pitting penetrates the surface or if polishing would remove too much material.
Documentation and maintenance records
Maintain detailed records of material grades, surface finishes, gasket materials, clamp models, torque values, and service dates. Maintain calibration records for torque tools and welding equipment. Accurate records support compliance, audits, validation, and faster troubleshooting.
| Maintenance Task | Frequency | Key Action | Notes |
|---|---|---|---|
| Clamp torque check | After assembly and monthly | Check with calibrated torque wrench | Follow manufacturer torque tables by Sanitary Coupling size |
| Gasket inspection and replacement | At scheduled intervals or whenever defects appear | Look for damage, compression set, or extrusion | Replace only with compatible gasket material |
| Ra and surface condition check | Quarterly or after welding | Check Ra values and look for surface defects | Electropolish or refinish if Ra exceeds hygienic specification |
| Weld profile inspection | After installation and annually | Inspect weld shape, smoothness, and defects | Repair and re-polish Sanitary Weld Fittings as needed |
| Cleaning and sterilization validation | According to each cleaning or sterilization cycle | Track time, temperature, chemistry, and concentration | Document results for validation and regulatory review |
Where To Buy: Sanitary Fittings Catalogs, CSI Fittings, And Installation Parts Supply
A detailed catalog review is a critical first step. Look for a Sanitary Fittings Catalog that lists material grade, finish, and pressure rating. It should also mention standards like DIN 32676 or DIN 11864-3A. Confirm item codes and stock status before ordering to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, check clamp type, gasket compatibility, and dimensional specs. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog makes gasket and clamp matching easier during assembly and maintenance.
Check Csi Fittings performance by reading independent reviews and supplier lead times. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Product | Nominal Size | Grade | Listed Finish | Catalog Price (USD) |
|---|---|---|---|---|
| Two-piece single-pin clamp | 0.25″–0.75″ | 304 stainless | Standard | $3.91 |
| Two-piece single-pin sanitary clamp | 1 inch | 304 stainless | Standard finish | Approx. $4.91 |
| Two-piece single-pin sanitary clamp | Two-inch size | 304 stainless | Standard catalog finish | $5.99 |
| Single-pin two-piece clamp | Two-and-a-half-inch size | Type 304 stainless steel | Standard finish | Approx. $6.93 |
| Two-piece single-pin clamp | 3″ | 304 stainless | Standard | Approx. $7.54 |
| Single-pin two-piece clamp | Four-inch size | 304 stainless | Standard catalog finish | 9.16 USD |
| Ferrule TC | 2 inch with 1.125 inch OAL | 316L | 32RA ID and OD | $4.24 |
| Ferrule TC | 2 inch with 1.125 inch OAL | 304 | 32RA ID and OD | $4.06 |
| TC sanitary ferrule | Three-inch size | 316L stainless | 32RA ID/OD | 6.15 USD |
| Double-bolt high-pressure clamp | One-and-a-half-inch size | 316 | Polished | Approx. $12.93 |
| Double-bolt high-pressure clamp | 2 inch | 316 | Polished finish | Approx. $14.62 |
| High-pressure double-bolt clamp | Three-inch size | Type 316 stainless steel | Polished sanitary finish | $20.26 |
Installation Parts Supply is a U.S.-based source for sanitary valves, ferrules, and clamps. Use their online listings to confirm availability, finishes, and exact pricing for specific Tri-Clamp Fittings Catalog items. Before purchasing, review product pages to cross-check pressure ratings, gasket materials, and fitting compatibility.
When sourcing parts, choose catalogs that show clear specs for 304 versus 316L, specify surface finish, and cite conforming standards. A targeted search through a Sanitary Fittings Catalog will speed up procurement and reduce returns on critical process components.
Conclusion
Stainless Steel Sanitary Pipe Fittings are necessary for maintaining cleanliness in various industries. Choosing between 304 and 316L, along with finishes such as 32RA or electropolishing, directly supports cleanability. This lowers contamination risks significantly. Ensuring that Tri Clover Fittings and other components meet standards like DIN 32676 is vital for tight Sanitary Connections and easy interchangeability.
When selecting fittings, review the material, finish, and connection type. Connection choices may include Tri-Clamp, weld, hose, or threaded fittings depending on pressure, product contact, cleaning requirements, and regulations. Use high-pressure clamps where process pressure or safety margins require them. Consistency in gaskets, clamps, and ferrules prevents leaks and simplifies maintenance. Proper installation and regular cleaning extend fitting life and support compliance with hygiene standards.
Catalogs provide useful pricing for two-piece clamps, ferrules, and high-pressure options. This allows for balanced cost and reliability in procurement decisions. When looking for where to buy sanitary fittings, prioritize reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and reliable sources help minimize downtime. This supports product quality in hygienic processing environments.
